System 28

The system tables are made of high-quality steel, equipped with a plasma-nitrided coating. System holes distributed in a diagonal grid are used for simple clamping. Thanks to the rib-reinforced construction, the table is stable and does not deform under load. The tables are compatible with other Siegmund and JC-Metal accessories.


View on the e-shop I AM INTERESTED

Description

MATERIAL

  • Material thickness approx. 24.5 – 27 mm

PROFESSIONAL 750

  • high quality steel S355J2+N
  • plasma nitrided + BAR coating

PROFESSIONAL EXTREME 8.7 / 8.8

  • hardened tool steel X8.7 / 8.8,
  • plasma nitrided + BAR-coating

HOLES DIAMETER 28 MM

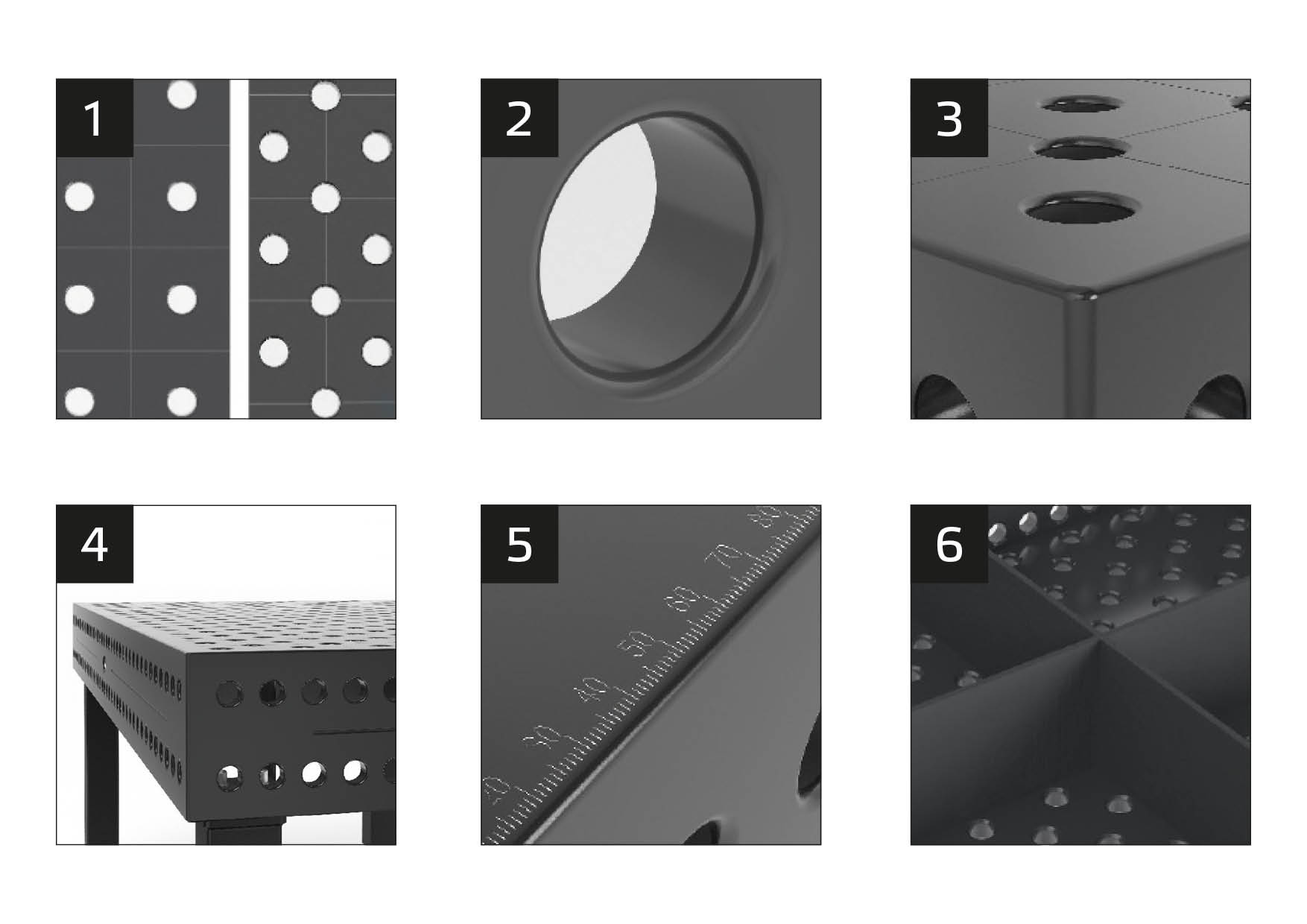

  1. System openings on the worktop at a spacing of 100x100mm or with a diagonal grid
  2. System openings with a radius of 3 mm
  3. Radius 3/6 mm on the edges and corners of the table
  4. Height of the side of the table 200 mm (distance between the holes in the sides 50 mm)
  5. With millimeter scale
  6. Construction reinforced by ribbing
